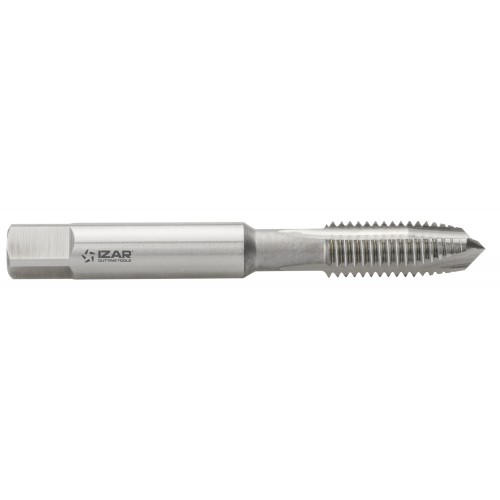

REF. 3103 MACHO MAQUINA RECTO HSS ISO529 (UNC)
- Macho recto para roscas tipo UNC. Fabricación HSS, norma ISO 529, tolerancia de rosca 6H.
- Tipo de entrada GUN para agujeros pasantes hasta 2 veces el diámetro, ángulo de desprendimiento 10-12°.
- Uso en aceros de construcción/cementación, cobre, bronce, latón y aleaciones de aluminio <600 N/mm².
Ángulo Despr.: 10º - 12º
Grupo Materiales Trabajo: Aceros <850 N/mm2//Aluminio//Cobre-Bronce-Latón
ISO: 529
Material específico Trabajo: Aceros construcción / carbono (<250 HB / <850 N/mm2)//Al-Mg no aleado (<100 HB / <350 N/mm2)//Aleaciones Al-Mg Si > 10% (<180 HB / <600 N/mm2)//Cobre-Bronce-Latón viruta corta (<200 HB / <700 N/mm2)
Tipo Macho: Recto
Tipo Trabajo: Agujero Pasante
Tolerancia: 6H
Uso Mano / Máquina: Máquina
N.1 Velocidad Corte (m/min.): 5-8
N.3 Velocidad Corte (m/min.): 15-35
N.4 Velocidad Corte (m/min.): 14-20
P.1 Velocidad Corte (m/min.): 6-10
Operación: Roscado
Recubrimiento: Sin recubrimiento
Tipo Herramienta: Machos Máquina
Grupo Materiales Trabajo: Aceros <850 N/mm2//Aluminio//Cobre-Bronce-Latón
ISO: 529
Material específico Trabajo: Aceros construcción / carbono (<250 HB / <850 N/mm2)//Al-Mg no aleado (<100 HB / <350 N/mm2)//Aleaciones Al-Mg Si > 10% (<180 HB / <600 N/mm2)//Cobre-Bronce-Latón viruta corta (<200 HB / <700 N/mm2)
Tipo Macho: Recto
Tipo Trabajo: Agujero Pasante
Tolerancia: 6H
Uso Mano / Máquina: Máquina
N.1 Velocidad Corte (m/min.): 5-8
N.3 Velocidad Corte (m/min.): 15-35
N.4 Velocidad Corte (m/min.): 14-20
P.1 Velocidad Corte (m/min.): 6-10
Operación: Roscado
Recubrimiento: Sin recubrimiento
Tipo Herramienta: Machos Máquina
Listado de referencias
| Referencia | Descripción | Tipo Norma | Entrada Macho x Tipo Rosca |
|---|---|---|---|
| 62989 | MACHO MAQUINA RECTO HSS ISO529 (UNC) - 3103 - N-01X64-B | ISO | B 3 x 5-5h GUN x UNC Nº1 |
| 62990 | MACHO MAQUINA RECTO HSS ISO529 (UNC) - 3103 - N-01X64-C | ISO | C 2-3h GUN x UNC Nº1 |
| 62991 | MACHO MAQUINA RECTO HSS ISO529 (UNC) - 3103 - N-02X56-B | ISO | B 3 x 5-5h GUN x UNC Nº2 |
| 62992 | MACHO MAQUINA RECTO HSS ISO529 (UNC) - 3103 - N-02X56-C | ISO | C 2-3h GUN x UNC Nº2 |
| 62994 | MACHO MAQUINA RECTO HSS ISO529 (UNC) - 3103 - N-03X48-B | ISO | B 3 x 5-5h GUN x UNC Nº3 |
| 62995 | MACHO MAQUINA RECTO HSS ISO529 (UNC) - 3103 - N-03X48-C | ISO | C 2-3h GUN x UNC Nº3 |
| 62996 | MACHO MAQUINA RECTO HSS ISO529 (UNC) - 3103 - N-04X40-B | ISO | B 3 x 5-5h GUN x UNC Nº4 |
| 62997 | MACHO MAQUINA RECTO HSS ISO529 (UNC) - 3103 - N-04X40-C | ISO | C 2-3h GUN x UNC Nº4 |
| 62998 | MACHO MAQUINA RECTO HSS ISO529 (UNC) - 3103 - N-05X40-B | ISO | B 3 x 5-5h GUN x UNC Nº5 |
| 62999 | MACHO MAQUINA RECTO HSS ISO529 (UNC) - 3103 - N-05X40-C | ISO | C 2-3h GUN x UNC Nº5 |
| 63000 | MACHO MAQUINA RECTO HSS ISO529 (UNC) - 3103 - N-06X32-B | ISO | B 3 x 5-5h GUN x UNC Nº6 |
| 63001 | MACHO MAQUINA RECTO HSS ISO529 (UNC) - 3103 - N-06X32-C | ISO | C 2-3h GUN x UNC Nº6 |
| 63003 | MACHO MAQUINA RECTO HSS ISO529 (UNC) - 3103 - N-08X32-B | ISO | B 3 x 5-5h GUN x UNC Nº8 |
| 63004 | MACHO MAQUINA RECTO HSS ISO529 (UNC) - 3103 - N-08X32-C | ISO | C 2-3h GUN x UNC Nº8 |
| 63006 | MACHO MAQUINA RECTO HSS ISO529 (UNC) - 3103 - N-10X24-B | ISO | B 3 x 5-5h GUN x UNC Nº10 |
| 63007 | MACHO MAQUINA RECTO HSS ISO529 (UNC) - 3103 - N-10X24-C | ISO | C 2-3h GUN x UNC Nº10 |
| 63009 | MACHO MAQUINA RECTO HSS ISO529 (UNC) - 3103 - N-12X24-B | ISO | B 3 x 5-5h GUN x UNC Nº12 |
| 63012 | MACHO MAQUINA RECTO HSS ISO529 (UNC) - 3103 - N-12X24-C | ISO | C 2-3h GUN x UNC Nº12 |
| 63016 | MACHO MAQUINA RECTO HSS ISO529 (UNC) - 3103 - 1/4X20-B | ISO | B 3 x 5-5h GUN x UNC 1/4 |
| 63018 | MACHO MAQUINA RECTO HSS ISO529 (UNC) - 3103 - 1/4X20-C | ISO | C 2-3h GUN x UNC 1/4 |
| 63019 | MACHO MAQUINA RECTO HSS ISO529 (UNC) - 3103 - 5/16X18-B | ISO | B 3 x 5-5h GUN x UNC 5/16 |
| 63021 | MACHO MAQUINA RECTO HSS ISO529 (UNC) - 3103 - 5/16X18-C | ISO | C 2-3h GUN x UNC 5/16 |
| 63022 | MACHO MAQUINA RECTO HSS ISO529 (UNC) - 3103 - 3/8X16-B | ISO | B 3 x 5-5h GUN x UNC 3/8 |
| 63027 | MACHO MAQUINA RECTO HSS ISO529 (UNC) - 3103 - 3/8X16-C | ISO | C 2-3h GUN x UNC 3/8 |
| 63028 | MACHO MAQUINA RECTO HSS ISO529 (UNC) - 3103 - 7/16X14-B | ISO | B 3 x 5-5h GUN x UNC 7/16 |
| 63030 | MACHO MAQUINA RECTO HSS ISO529 (UNC) - 3103 - 7/16X14-C | ISO | C 2-3h GUN x UNC 7/16 |
| 63031 | MACHO MAQUINA RECTO HSS ISO529 (UNC) - 3103 - 1/2X13-B | ISO | B 3 x 5-5h GUN x UNC 1/2 |
| 63033 | MACHO MAQUINA RECTO HSS ISO529 (UNC) - 3103 - 1/2X13-C | ISO | C 2-3h GUN x UNC 1/2 |
| 63034 | MACHO MAQUINA RECTO HSS ISO529 (UNC) - 3103 - 9/16X12-B | ISO | B 3 x 5-5h GUN x UNC 9/16 |
| 63036 | MACHO MAQUINA RECTO HSS ISO529 (UNC) - 3103 - 9/16X12-C | ISO | C 2-3h GUN x UNC 9/16 |
| 63038 | MACHO MAQUINA RECTO HSS ISO529 (UNC) - 3103 - 5/8X11-B | ISO | B 3 x 5-5h GUN x UNC 5/8 |
| 63039 | MACHO MAQUINA RECTO HSS ISO529 (UNC) - 3103 - 5/8X11-C | ISO | C 2-3h GUN x UNC 5/8 |
| 63040 | MACHO MAQUINA RECTO HSS ISO529 (UNC) - 3103 - 3/4X10-B | ISO | B 3 x 5-5h GUN x UNC 3/4 |
| 63042 | MACHO MAQUINA RECTO HSS ISO529 (UNC) - 3103 - 3/4X10-C | ISO | C 2-3h GUN x UNC 3/4 |
| 63043 | MACHO MAQUINA RECTO HSS ISO529 (UNC) - 3103 - 7/8X9-B | ISO | B 3 x 5-5h GUN x UNC 7/8 |
| 63045 | MACHO MAQUINA RECTO HSS ISO529 (UNC) - 3103 - 7/8X9-C | ISO | C 2-3h GUN x UNC 7/8 |
| 63046 | MACHO MAQUINA RECTO HSS ISO529 (UNC) - 3103 - 1X8-B | ISO | B 3 x 5-5h GUN x UNC 1" |
| 63047 | MACHO MAQUINA RECTO HSS ISO529 (UNC) - 3103 - 1X8-C | ISO | C 2-3h GUN x UNC 1" |
| 63048 | MACHO MAQUINA RECTO HSS ISO529 (UNC) - 3103 - 1-1/8X7-B | ISO | B 3 x 5-5h GUN x UNC 1"1/8 |
| 63049 | MACHO MAQUINA RECTO HSS ISO529 (UNC) - 3103 - 1-1/8X7-C | ISO | C 2-3h GUN x UNC 1"1/8 |
| 63051 | MACHO MAQUINA RECTO HSS ISO529 (UNC) - 3103 - 1-1/4X7-B | ISO | B 3 x 5-5h GUN x UNC 1"1/4 |
| 63052 | MACHO MAQUINA RECTO HSS ISO529 (UNC) - 3103 - 1-1/4X7-C | ISO | C 2-3h GUN x UNC 1"1/4 |
| 63054 | MACHO MAQUINA RECTO HSS ISO529 (UNC) - 3103 - 1-3/8X6-B | ISO | B 3 x 5-5h GUN x UNC 1"3/8 |
| 63057 | MACHO MAQUINA RECTO HSS ISO529 (UNC) - 3103 - 1-3/8X6-C | ISO | C 2-3h GUN x UNC 1"3/8 |
| 63058 | MACHO MAQUINA RECTO HSS ISO529 (UNC) - 3103 - 1-1/2X6-B | ISO | B 3 x 5-5h GUN x UNC 1"1/2 |
| 63060 | MACHO MAQUINA RECTO HSS ISO529 (UNC) - 3103 - 1-1/2X6-C | ISO | C 2-3h GUN x UNC 1"1/2 |
| 63061 | MACHO MAQUINA RECTO HSS ISO529 (UNC) - 3103 - 1-3/4X5-B | ISO | B 3 x 5-5h GUN x UNC 1"3/4 |
| 63063 | MACHO MAQUINA RECTO HSS ISO529 (UNC) - 3103 - 1-3/4X5-C | ISO | C 2-3h GUN x UNC 1"3/4 |
| 63064 | MACHO MAQUINA RECTO HSS ISO529 (UNC) - 3103 - 2X4-B | ISO | B 3 x 5-5h GUN x UNC 2" |
| 63066 | MACHO MAQUINA RECTO HSS ISO529 (UNC) - 3103 - 2X4-C | ISO | C 2-3h GUN x UNC 2" |
