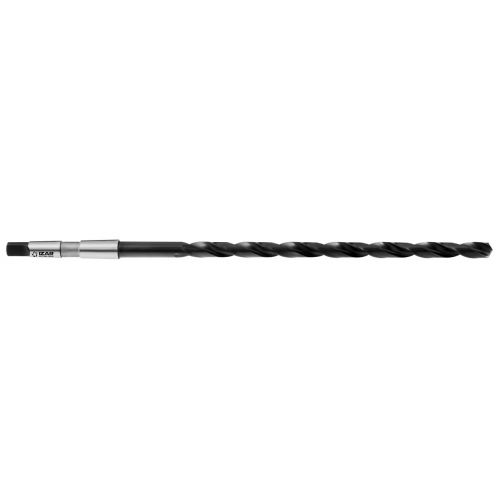

REF. 1140 BROCA HSS DIN1870N CONICA EXTRA-LARGA
- Uso general en aceros estándar, aceros aleados, fundición, cobre, bronce, latón
- Mango Cónico Serie Extra Larga DIN 1870N
- Punta 118º. Afilado Universal
Ángulo Punta: 118º
Aplicación Alternativa: N.1//N.2//P.2
Aplicación Recomendada: K.1//K.2//P.1
DIN: 1870
Material específico Trabajo: Aceros aleados (<300 HB / <1000 N/mm2)//Aceros construcción / carbono (<250 HB / <850 N/mm2)//Cobre-Bronce-Latón viruta corta (<200 HB / <700 N/mm2)//Cobre-Bronce-Latón viruta larga (<200 HB / <700 N/mm2)//Fundición (200-300 HB / 700-1000 N/mm2)//Fundición (<200 HB / <700 N/mm2)
Serie: Extra Larga
Tipo Afilado: Universal
Tipo DIN: N
Tipo Mango: Cónico
Tolerancia Diámetro Corte: h8
K.1 Velocidad Corte (m/min.): 30-35
K.2 Velocidad Corte (m/min.): 25-30
N.1 Velocidad Corte (m/min.): 30-40
N.2 Velocidad Corte (m/min.): 30-40
P.1 Velocidad Corte (m/min.): 25-30
P.2 Velocidad Corte (m/min.): 15-20
Operación: Taladrado
Recubrimiento: Sin recubrimiento
Tipo Herramienta: Broca
Aplicación Alternativa: N.1//N.2//P.2
Aplicación Recomendada: K.1//K.2//P.1
DIN: 1870
Material específico Trabajo: Aceros aleados (<300 HB / <1000 N/mm2)//Aceros construcción / carbono (<250 HB / <850 N/mm2)//Cobre-Bronce-Latón viruta corta (<200 HB / <700 N/mm2)//Cobre-Bronce-Latón viruta larga (<200 HB / <700 N/mm2)//Fundición (200-300 HB / 700-1000 N/mm2)//Fundición (<200 HB / <700 N/mm2)
Serie: Extra Larga
Tipo Afilado: Universal
Tipo DIN: N
Tipo Mango: Cónico
Tolerancia Diámetro Corte: h8
K.1 Velocidad Corte (m/min.): 30-35
K.2 Velocidad Corte (m/min.): 25-30
N.1 Velocidad Corte (m/min.): 30-40
N.2 Velocidad Corte (m/min.): 30-40
P.1 Velocidad Corte (m/min.): 25-30
P.2 Velocidad Corte (m/min.): 15-20
Operación: Taladrado
Recubrimiento: Sin recubrimiento
Tipo Herramienta: Broca
Documentos
Listado de referencias
| Referencia | Descripción | Diámetro Corte x Longitud total |
|---|---|---|
| 15440 | BROCA HSS DIN1870N CONICA EXTRA-LARGA - 1140 - 8,00x265 mm | 8mm x 265mm |
| 15443 | BROCA HSS DIN1870N CONICA EXTRA-LARGA - 1140 - 8,00x330 mm | 8mm x 330mm |
| 15446 | BROCA HSS DIN1870N CONICA EXTRA-LARGA - 1140 - 8,50x265 mm | 8.5mm x 265mm |
| 15449 | BROCA HSS DIN1870N CONICA EXTRA-LARGA - 1140 - 8,50x330 mm | 8.5mm x 330mm |
| 15452 | BROCA HSS DIN1870N CONICA EXTRA-LARGA - 1140 - 9,00x275 mm | 9mm x 275mm |
| 15455 | BROCA HSS DIN1870N CONICA EXTRA-LARGA - 1140 - 9,00x345 mm | 9mm x 345mm |
| 15458 | BROCA HSS DIN1870N CONICA EXTRA-LARGA - 1140 - 9,50x275 mm | 9.5mm x 275mm |
| 15461 | BROCA HSS DIN1870N CONICA EXTRA-LARGA - 1140 - 9,50x345 mm | 9.5mm x 345mm |
| 15464 | BROCA HSS DIN1870N CONICA EXTRA-LARGA - 1140 - 10,00x285 mm | 10mm x 285mm |
| 15467 | BROCA HSS DIN1870N CONICA EXTRA-LARGA - 1140 - 10,00x360 mm | 10mm x 360mm |
| 15470 | BROCA HSS DIN1870N CONICA EXTRA-LARGA - 1140 - 10,50x285 mm | 10.5mm x 285mm |
| 15473 | BROCA HSS DIN1870N CONICA EXTRA-LARGA - 1140 - 10,50x360 mm | 10.5mm x 360mm |
| 15476 | BROCA HSS DIN1870N CONICA EXTRA-LARGA - 1140 - 11,00x300 mm | 11mm x 300mm |
| 15479 | BROCA HSS DIN1870N CONICA EXTRA-LARGA - 1140 - 11,00x375 mm | 11mm x 375mm |
| 15482 | BROCA HSS DIN1870N CONICA EXTRA-LARGA - 1140 - 11,50x300 mm | 11.5mm x 300mm |
| 15485 | BROCA HSS DIN1870N CONICA EXTRA-LARGA - 1140 - 11,50x375 mm | 11.5mm x 375mm |
| 15488 | BROCA HSS DIN1870N CONICA EXTRA-LARGA - 1140 - 12,00x310 mm | 12mm x 310mm |
| 15491 | BROCA HSS DIN1870N CONICA EXTRA-LARGA - 1140 - 12,00x395 mm | 12mm x 395mm |
| 15494 | BROCA HSS DIN1870N CONICA EXTRA-LARGA - 1140 - 12,50x310 mm | 12.5mm x 310mm |
| 15497 | BROCA HSS DIN1870N CONICA EXTRA-LARGA - 1140 - 12,50x395 mm | 12.5mm x 395mm |
| 15500 | BROCA HSS DIN1870N CONICA EXTRA-LARGA - 1140 - 13,00x310 mm | 13mm x 310mm |
| 15503 | BROCA HSS DIN1870N CONICA EXTRA-LARGA - 1140 - 13,00x395 mm | 13mm x 395mm |
| 15506 | BROCA HSS DIN1870N CONICA EXTRA-LARGA - 1140 - 13,50x325 mm | 13.5mm x 325mm |
| 15509 | BROCA HSS DIN1870N CONICA EXTRA-LARGA - 1140 - 13,50x410 mm | 13.5mm x 410mm |
| 15512 | BROCA HSS DIN1870N CONICA EXTRA-LARGA - 1140 - 14,00x325 mm | 14mm x 325mm |
| 15515 | BROCA HSS DIN1870N CONICA EXTRA-LARGA - 1140 - 14,00x410 mm | 14mm x 410mm |
| 15518 | BROCA HSS DIN1870N CONICA EXTRA-LARGA - 1140 - 14,50x340 mm | 14.5mm x 340mm |
| 15521 | BROCA HSS DIN1870N CONICA EXTRA-LARGA - 1140 - 14,50x425 mm | 14.5mm x 425mm |
| 15524 | BROCA HSS DIN1870N CONICA EXTRA-LARGA - 1140 - 15,00x340 mm | 15mm x 340mm |
| 15527 | BROCA HSS DIN1870N CONICA EXTRA-LARGA - 1140 - 15,00x425 mm | 15mm x 425mm |
| 15530 | BROCA HSS DIN1870N CONICA EXTRA-LARGA - 1140 - 15,50x355 mm | 15.5mm x 355mm |
| 15533 | BROCA HSS DIN1870N CONICA EXTRA-LARGA - 1140 - 15,50x445 mm | 15.5mm x 445mm |
| 15536 | BROCA HSS DIN1870N CONICA EXTRA-LARGA - 1140 - 16,00x355 mm | 16mm x 355mm |
| 15539 | BROCA HSS DIN1870N CONICA EXTRA-LARGA - 1140 - 16,00x445 mm | 16mm x 445mm |
| 15542 | BROCA HSS DIN1870N CONICA EXTRA-LARGA - 1140 - 16,50x355 mm | 16.5mm x 355mm |
| 15545 | BROCA HSS DIN1870N CONICA EXTRA-LARGA - 1140 - 16,50x445 mm | 16.5mm x 445mm |
| 15548 | BROCA HSS DIN1870N CONICA EXTRA-LARGA - 1140 - 17,00x355 mm | 17mm x 355mm |
| 15551 | BROCA HSS DIN1870N CONICA EXTRA-LARGA - 1140 - 17,00x445 mm | 17mm x 445mm |
| 15554 | BROCA HSS DIN1870N CONICA EXTRA-LARGA - 1140 - 17,50x370 mm | 17.5mm x 370mm |
| 15557 | BROCA HSS DIN1870N CONICA EXTRA-LARGA - 1140 - 17,50x465 mm | 17.5mm x 465mm |
| 15560 | BROCA HSS DIN1870N CONICA EXTRA-LARGA - 1140 - 18,00x370 mm | 18mm x 370mm |
| 15563 | BROCA HSS DIN1870N CONICA EXTRA-LARGA - 1140 - 18,00x465 mm | 18mm x 465mm |
| 15566 | BROCA HSS DIN1870N CONICA EXTRA-LARGA - 1140 - 18,50x370 mm | 18.5mm x 370mm |
| 15569 | BROCA HSS DIN1870N CONICA EXTRA-LARGA - 1140 - 18,50x465 mm | 18.5mm x 465mm |
| 15572 | BROCA HSS DIN1870N CONICA EXTRA-LARGA - 1140 - 19,00x370 mm | 19mm x 370mm |
| 15575 | BROCA HSS DIN1870N CONICA EXTRA-LARGA - 1140 - 19,00x465 mm | 19mm x 465mm |
| 15578 | BROCA HSS DIN1870N CONICA EXTRA-LARGA - 1140 - 19,50x385 mm | 19.5mm x 385mm |
| 15581 | BROCA HSS DIN1870N CONICA EXTRA-LARGA - 1140 - 19,50x490 mm | 19.5mm x 490mm |
| 15584 | BROCA HSS DIN1870N CONICA EXTRA-LARGA - 1140 - 20,00x385 mm | 20mm x 385mm |
| 15587 | BROCA HSS DIN1870N CONICA EXTRA-LARGA - 1140 - 20,00x490 mm | 20mm x 490mm |
| 15590 | BROCA HSS DIN1870N CONICA EXTRA-LARGA - 1140 - 20,50x385 mm | 20.5mm x 385mm |
| 15593 | BROCA HSS DIN1870N CONICA EXTRA-LARGA - 1140 - 20,50x490 mm | 20.5mm x 490mm |
| 15596 | BROCA HSS DIN1870N CONICA EXTRA-LARGA - 1140 - 21,00x385 mm | 21mm x 385mm |
| 15599 | BROCA HSS DIN1870N CONICA EXTRA-LARGA - 1140 - 21,00x490 mm | 21mm x 490mm |
| 15602 | BROCA HSS DIN1870N CONICA EXTRA-LARGA - 1140 - 21,50x405 mm | 21.5mm x 405mm |
| 15605 | BROCA HSS DIN1870N CONICA EXTRA-LARGA - 1140 - 21,50x515 mm | 21.5mm x 515mm |
| 15608 | BROCA HSS DIN1870N CONICA EXTRA-LARGA - 1140 - 22,00x405 mm | 22mm x 405mm |
| 15611 | BROCA HSS DIN1870N CONICA EXTRA-LARGA - 1140 - 22,00x515 mm | 22mm x 515mm |
| 15614 | BROCA HSS DIN1870N CONICA EXTRA-LARGA - 1140 - 22,50x405 mm | 22.5mm x 405mm |
| 15617 | BROCA HSS DIN1870N CONICA EXTRA-LARGA - 1140 - 22,50x515 mm | 22.5mm x 515mm |
| 15620 | BROCA HSS DIN1870N CONICA EXTRA-LARGA - 1140 - 23,00x405 mm | 23mm x 405mm |
| 15623 | BROCA HSS DIN1870N CONICA EXTRA-LARGA - 1140 - 23,00x515 mm | 23mm x 515mm |
| 15626 | BROCA HSS DIN1870N CONICA EXTRA-LARGA - 1140 - 23,50x425 mm | 23.5mm x 425mm |
| 15629 | BROCA HSS DIN1870N CONICA EXTRA-LARGA - 1140 - 23,50x535 mm | 23.5mm x 535mm |
| 15632 | BROCA HSS DIN1870N CONICA EXTRA-LARGA - 1140 - 24,00x440 mm | 24mm x 440mm |
| 15635 | BROCA HSS DIN1870N CONICA EXTRA-LARGA - 1140 - 24,00x555 mm | 24mm x 555mm |
| 15638 | BROCA HSS DIN1870N CONICA EXTRA-LARGA - 1140 - 24,50x440 mm | 24.5mm x 440mm |
| 15641 | BROCA HSS DIN1870N CONICA EXTRA-LARGA - 1140 - 24,50x555 mm | 24.5mm x 555mm |
| 15644 | BROCA HSS DIN1870N CONICA EXTRA-LARGA - 1140 - 25,00x440 mm | 25mm x 440mm |
| 15647 | BROCA HSS DIN1870N CONICA EXTRA-LARGA - 1140 - 25,00x555 mm | 25mm x 555mm |
| 15650 | BROCA HSS DIN1870N CONICA EXTRA-LARGA - 1140 - 25,50x440 mm | 25.5mm x 440mm |
| 15653 | BROCA HSS DIN1870N CONICA EXTRA-LARGA - 1140 - 25,50x555 mm | 25.5mm x 555mm |
| 15656 | BROCA HSS DIN1870N CONICA EXTRA-LARGA - 1140 - 26,00x440 mm | 26mm x 440mm |
| 15659 | BROCA HSS DIN1870N CONICA EXTRA-LARGA - 1140 - 26,00x555 mm | 26mm x 555mm |
| 15662 | BROCA HSS DIN1870N CONICA EXTRA-LARGA - 1140 - 26,50x440 mm | 26.5mm x 440mm |
| 15665 | BROCA HSS DIN1870N CONICA EXTRA-LARGA - 1140 - 26,50x555 mm | 26.5mm x 555mm |
| 15668 | BROCA HSS DIN1870N CONICA EXTRA-LARGA - 1140 - 27,00x460 mm | 27mm x 460mm |
| 15671 | BROCA HSS DIN1870N CONICA EXTRA-LARGA - 1140 - 27,00x580 mm | 27mm x 580mm |
| 15674 | BROCA HSS DIN1870N CONICA EXTRA-LARGA - 1140 - 27,50x460 mm | 27.5mm x 460mm |
| 15677 | BROCA HSS DIN1870N CONICA EXTRA-LARGA - 1140 - 27,50x580 mm | 27.5mm x 580mm |
| 15680 | BROCA HSS DIN1870N CONICA EXTRA-LARGA - 1140 - 28,00x460 mm | 28mm x 460mm |
| 15683 | BROCA HSS DIN1870N CONICA EXTRA-LARGA - 1140 - 28,00x580 mm | 28mm x 580mm |
| 15686 | BROCA HSS DIN1870N CONICA EXTRA-LARGA - 1140 - 28,50x460 mm | 28.5mm x 460mm |
| 15689 | BROCA HSS DIN1870N CONICA EXTRA-LARGA - 1140 - 28,50x580 mm | 28.5mm x 580mm |
| 15692 | BROCA HSS DIN1870N CONICA EXTRA-LARGA - 1140 - 29,00x460 mm | 29mm x 460mm |
| 15695 | BROCA HSS DIN1870N CONICA EXTRA-LARGA - 1140 - 29,00x580 mm | 29mm x 580mm |
| 15698 | BROCA HSS DIN1870N CONICA EXTRA-LARGA - 1140 - 29,50x460 mm | 29.5mm x 460mm |
| 15701 | BROCA HSS DIN1870N CONICA EXTRA-LARGA - 1140 - 29,50x580 mm | 29.5mm x 580mm |
| 15704 | BROCA HSS DIN1870N CONICA EXTRA-LARGA - 1140 - 30,00x460 mm | 30mm x 460mm |
| 15707 | BROCA HSS DIN1870N CONICA EXTRA-LARGA - 1140 - 30,00x580 mm | 30mm x 580mm |
| 15710 | BROCA HSS DIN1870N CONICA EXTRA-LARGA - 1140 - 31,00x480 mm | 31mm x 480mm |
| 15713 | BROCA HSS DIN1870N CONICA EXTRA-LARGA - 1140 - 31,00x610 mm | 31mm x 610mm |
| 15716 | BROCA HSS DIN1870N CONICA EXTRA-LARGA - 1140 - 32,00x505 mm | 32mm x 505mm |
| 15719 | BROCA HSS DIN1870N CONICA EXTRA-LARGA - 1140 - 32,00x635 mm | 32mm x 635mm |
| 15722 | BROCA HSS DIN1870N CONICA EXTRA-LARGA - 1140 - 33,00x505 mm | 33mm x 505mm |
| 15725 | BROCA HSS DIN1870N CONICA EXTRA-LARGA - 1140 - 33,00x635 mm | 33mm x 635mm |
| 15728 | BROCA HSS DIN1870N CONICA EXTRA-LARGA - 1140 - 34,00x530 mm | 34mm x 530mm |
| 15731 | BROCA HSS DIN1870N CONICA EXTRA-LARGA - 1140 - 34,00x665 mm | 34mm x 665mm |
| 15734 | BROCA HSS DIN1870N CONICA EXTRA-LARGA - 1140 - 35,00x530 mm | 35mm x 530mm |
| 15737 | BROCA HSS DIN1870N CONICA EXTRA-LARGA - 1140 - 35,00x665 mm | 35mm x 665mm |
| 15740 | BROCA HSS DIN1870N CONICA EXTRA-LARGA - 1140 - 36,00x530 mm | 36mm x 530mm |
| 15743 | BROCA HSS DIN1870N CONICA EXTRA-LARGA - 1140 - 36,00x665 mm | 36mm x 665mm |
| 15746 | BROCA HSS DIN1870N CONICA EXTRA-LARGA - 1140 - 37,00x530 mm | 37mm x 530mm |
| 15749 | BROCA HSS DIN1870N CONICA EXTRA-LARGA - 1140 - 37,00x665 mm | 37mm x 665mm |
| 15752 | BROCA HSS DIN1870N CONICA EXTRA-LARGA - 1140 - 38,00x555 mm | 38mm x 555mm |
| 15755 | BROCA HSS DIN1870N CONICA EXTRA-LARGA - 1140 - 38,00x695 mm | 38mm x 695mm |
| 15758 | BROCA HSS DIN1870N CONICA EXTRA-LARGA - 1140 - 39,00x555 mm | 39mm x 555mm |
| 15761 | BROCA HSS DIN1870N CONICA EXTRA-LARGA - 1140 - 39,00x695 mm | 39mm x 695mm |
| 15764 | BROCA HSS DIN1870N CONICA EXTRA-LARGA - 1140 - 40,00x555 mm | 40mm x 555mm |
| 15767 | BROCA HSS DIN1870N CONICA EXTRA-LARGA - 1140 - 40,00x695 mm | 40mm x 695mm |
| 15770 | BROCA HSS DIN1870N CONICA EXTRA-LARGA - 1140 - 41,00x555 mm | 41mm x 555mm |
| 15773 | BROCA HSS DIN1870N CONICA EXTRA-LARGA - 1140 - 41,00x695 mm | 41mm x 695mm |
| 15776 | BROCA HSS DIN1870N CONICA EXTRA-LARGA - 1140 - 42,00x555 mm | 42mm x 555mm |
| 15779 | BROCA HSS DIN1870N CONICA EXTRA-LARGA - 1140 - 42,00x695 mm | 42mm x 695mm |
| 15782 | BROCA HSS DIN1870N CONICA EXTRA-LARGA - 1140 - 43,00x585 mm | 43mm x 585mm |
| 15785 | BROCA HSS DIN1870N CONICA EXTRA-LARGA - 1140 - 43,00x735 mm | 43mm x 735mm |
| 15791 | BROCA HSS DIN1870N CONICA EXTRA-LARGA - 1140 - 44,00x735 mm | 44mm x 735mm |
| 15797 | BROCA HSS DIN1870N CONICA EXTRA-LARGA - 1140 - 45,00x735 mm | 45mm x 735mm |
| 15809 | BROCA HSS DIN1870N CONICA EXTRA-LARGA - 1140 - 47,00x735 mm | 47mm x 735mm |
| 15812 | BROCA HSS DIN1870N CONICA EXTRA-LARGA - 1140 - 48,00x605 mm | 48mm x 605mm |
| 15818 | BROCA HSS DIN1870N CONICA EXTRA-LARGA - 1140 - 49,00x605 mm | 49mm x 605mm |
| 15821 | BROCA HSS DIN1870N CONICA EXTRA-LARGA - 1140 - 49,00x765 mm | 49mm x 765mm |
| 15824 | BROCA HSS DIN1870N CONICA EXTRA-LARGA - 1140 - 50,00x605 mm | 50mm x 605mm |
