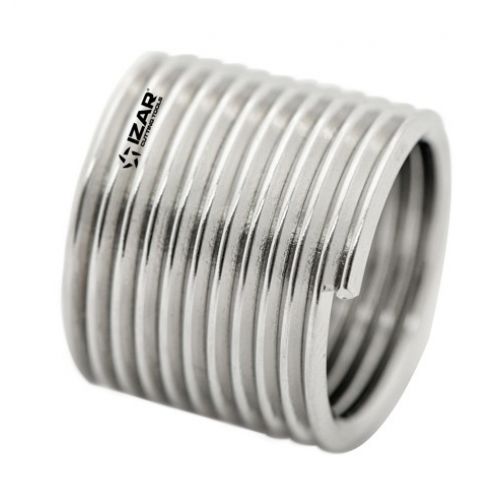

REF. 3300 INSERTO REPARACION ROSCAS
- Especial aleaciones de aluminio-magnesio
- Instalación rápida y sencilla
- Resistente al desgaste, a la tensión, a la corrosión. Termoestable
- Fabricacion en INOX 304
Material específico Trabajo: Aceros//Aleaciones
Operación: Roscado
Tipo Herramienta: Varios
Operación: Roscado
Tipo Herramienta: Varios
Listado de referencias
| Referencia | Descripción | Tipo Rosca x Paso x Largo de Inserto |
|---|---|---|
| 56287 | INSERTO REPARACION ROSCAS - 3300 - 03,00X0,50-1,0XD | M 3 x 0.5mm x 1xD |
| 56288 | INSERTO REPARACION ROSCAS - 3300 - 03,00X0,50-1,5XD | M 3 x 0.5mm x 1 x 5xD |
| 56289 | INSERTO REPARACION ROSCAS - 3300 - 03,00X0,50-2,0XD | M 3 x 0.5mm x 2xD |
| 56291 | INSERTO REPARACION ROSCAS - 3300 - 03,00X0,50-2,5XD | M 3 x 0.5mm x 2 x 5XD |
| 56292 | INSERTO REPARACION ROSCAS - 3300 - 03,00X0,50-3,0XD | M 3 x 0.5mm x 3xD |
| 56293 | INSERTO REPARACION ROSCAS - 3300 - 04,00X0,70-1,0XD | M 4 x 0.7mm x 1xD |
| 56294 | INSERTO REPARACION ROSCAS - 3300 - 04,00X0,70-1,5XD | M 4 x 0.7mm x 1 x 5xD |
| 56297 | INSERTO REPARACION ROSCAS - 3300 - 04,00X0,70-2,0XD | M 4 x 0.7mm x 2xD |
| 56299 | INSERTO REPARACION ROSCAS - 3300 - 04,00X0,70-2,5XD | M 4 x 0.7mm x 2 x 5XD |
| 56300 | INSERTO REPARACION ROSCAS - 3300 - 04,00X0,70-3,0XD | M 4 x 0.7mm x 3xD |
| 56302 | INSERTO REPARACION ROSCAS - 3300 - 05,00X0,80-1,0XD | M 5 x 0.8mm x 1xD |
| 56303 | INSERTO REPARACION ROSCAS - 3300 - 05,00X0,80-1,5XD | M 5 x 0.8mm x 1 x 5xD |
| 56304 | INSERTO REPARACION ROSCAS - 3300 - 05,00X0,80-2,0XD | M 5 x 0.8mm x 2xD |
| 56306 | INSERTO REPARACION ROSCAS - 3300 - 05,00X0,80-2,5XD | M 5 x 0.8mm x 2 x 5XD |
| 56309 | INSERTO REPARACION ROSCAS - 3300 - 05,00X0,80-3,0XD | M 5 x 0.8mm x 3xD |
| 56310 | INSERTO REPARACION ROSCAS - 3300 - 06,00X1,00-1,0XD (Tol. +) | M 6 x 1mm x 1xD |
| 14857 | INSERTO REPARACION ROSCAS - 3300 - 06,00X1,00-1,0XD (Tol. -) | M 6 x 1mm x 1xD (Tol.-) |
| 56311 | INSERTO REPARACION ROSCAS - 3300 - 06,00X1,00-1,5XD (Tol. +) | M 6 x 1mm x 1 x 5xD |
| 14859 | INSERTO REPARACION ROSCAS - 3300 - 06,00X1,00-1,5XD (Tol. -) | M 6 x 1mm x 1 x 5xD (Tol.-) |
| 56312 | INSERTO REPARACION ROSCAS - 3300 - 06,00X1,00-2,0XD (Tol. +) | M 6 x 1mm x 2xD |
| 14863 | INSERTO REPARACION ROSCAS - 3300 - 06,00X1,00-2,0XD (Tol. -) | M 6 x 1mm x 2xD (Tol.-) |
| 56313 | INSERTO REPARACION ROSCAS - 3300 - 06,00X1,00-2,5XD (Tol. +) | M 6 x 1mm x 2 x 5XD |
| 14865 | INSERTO REPARACION ROSCAS - 3300 - 06,00X1,00-2,5XD (Tol. -) | M 6 x 1mm x 2 x 5xD (Tol.-) |
| 56315 | INSERTO REPARACION ROSCAS - 3300 - 06,00X1,00-3,0XD (Tol. +) | M 6 x 1mm x 3xD |
| 14866 | INSERTO REPARACION ROSCAS - 3300 - 06,00X1,00-3,0XD (Tol. -) | M 6 x 1mm x 3xD (Tol.-) |
| 56316 | INSERTO REPARACION ROSCAS - 3300 - 07,00X1,00-1,0XD | M 7 x 1mm x 1xD |
| 56318 | INSERTO REPARACION ROSCAS - 3300 - 07,00X1,00-1,5XD | M 7 x 1mm x 1 x 5xD |
| 56319 | INSERTO REPARACION ROSCAS - 3300 - 07,00X1,00-2,0XD | M 7 x 1mm x 2xD |
| 56320 | INSERTO REPARACION ROSCAS - 3300 - 07,00X1,00-2,5XD | M 7 x 1mm x 2 x 5XD |
| 56321 | INSERTO REPARACION ROSCAS - 3300 - 07,00X1,00-3,0XD | M 7 x 1mm x 3xD |
| 56322 | INSERTO REPARACION ROSCAS - 3300 - 08,00X1,00-1,0XD | M 8 x 1mm x 1xD |
| 56324 | INSERTO REPARACION ROSCAS - 3300 - 08,00X1,00-1,5XD | M 8 x 1mm x 1 x 5xD |
| 56325 | INSERTO REPARACION ROSCAS - 3300 - 08,00X1,00-2,0XD | M 8 x 1mm x 2xD |
| 56326 | INSERTO REPARACION ROSCAS - 3300 - 08,00X1,00-2,5XD | M 8 x 1mm x 2 x 5XD |
| 56327 | INSERTO REPARACION ROSCAS - 3300 - 08,00X1,00-3,0XD | M 8 x 1mm x 3xD |
| 56332 | INSERTO REPARACION ROSCAS - 3300 - 08,00X1,25-1,0XD | M 8 x 1.25mm x 1xD |
| 56333 | INSERTO REPARACION ROSCAS - 3300 - 08,00X1,25-1,5XD | M 8 x 1.25mm x 1 x 5xD |
| 56334 | INSERTO REPARACION ROSCAS - 3300 - 08,00X1,25-2,0XD | M 8 x 1.25mm x 2xD |
| 56336 | INSERTO REPARACION ROSCAS - 3300 - 08,00X1,25-2,5XD | M 8 x 1.25mm x 2 x 5XD |
| 56337 | INSERTO REPARACION ROSCAS - 3300 - 08,00X1,25-3,0XD | M 8 x 1.25mm x 3xD |
| 56339 | INSERTO REPARACION ROSCAS - 3300 - 09,00X1,25-1,0XD | M 9 x 1.25mm x 1xD |
| 56340 | INSERTO REPARACION ROSCAS - 3300 - 09,00X1,25-1,5XD | M 9 x 1.25mm x 1 x 5xD |
| 56341 | INSERTO REPARACION ROSCAS - 3300 - 09,00X1,25-2,0XD | M 9 x 1.25mm x 2xD |
| 56342 | INSERTO REPARACION ROSCAS - 3300 - 09,00X1,25-2,5XD | M 9 x 1.25mm x 2 x 5XD |
| 56343 | INSERTO REPARACION ROSCAS - 3300 - 09,00X1,25-3,0XD | M 9 x 1.25mm x 3xD |
| 56344 | INSERTO REPARACION ROSCAS - 3300 - 10,00X1,00-1,0XD | M 10 x 1mm x 1xD |
| 56345 | INSERTO REPARACION ROSCAS - 3300 - 10,00X1,00-1,5XD | M 10 x 1mm x 1 x 5xD |
| 56346 | INSERTO REPARACION ROSCAS - 3300 - 10,00X1,00-2,0XD | M 10 x 1mm x 2xD |
| 56347 | INSERTO REPARACION ROSCAS - 3300 - 10,00X1,00-2,5XD | M 10 x 1mm x 2 x 5XD |
| 56348 | INSERTO REPARACION ROSCAS - 3300 - 10,00X1,00-3,0XD | M 10 x 1mm x 3xD |
| 56349 | INSERTO REPARACION ROSCAS - 3300 - 10,00X1,25-1,0XD | M 10 x 1.25mm x 1xD |
| 56351 | INSERTO REPARACION ROSCAS - 3300 - 10,00X1,25-1,5XD | M 10 x 1.25mm x 1 x 5xD |
| 56352 | INSERTO REPARACION ROSCAS - 3300 - 10,00X1,25-2,0XD | M 10 x 1.25mm x 2xD |
| 56353 | INSERTO REPARACION ROSCAS - 3300 - 10,00X1,25-2,5XD | M 10 x 1.25mm x 2 x 5XD |
| 56354 | INSERTO REPARACION ROSCAS - 3300 - 10,00X1,25-3,0XD | M 10 x 1.25mm x 3xD |
| 56355 | INSERTO REPARACION ROSCAS - 3300 - 10,00X1,50-1,0XD | M 10 x 1.5mm x 1xD |
| 56357 | INSERTO REPARACION ROSCAS - 3300 - 10,00X1,50-1,5XD | M 10 x 1.5mm x 1 x 5xD |
| 56360 | INSERTO REPARACION ROSCAS - 3300 - 10,00X1,50-2,0XD | M 10 x 1.5mm x 2xD |
| 56361 | INSERTO REPARACION ROSCAS - 3300 - 10,00X1,50-2,5XD | M 10 x 1.5mm x 2 x 5XD |
| 56362 | INSERTO REPARACION ROSCAS - 3300 - 10,00X1,50-3,0XD | M 10 x 1.5mm x 3xD |
| 56363 | INSERTO REPARACION ROSCAS - 3300 - 11,00X1,50-1,0XD | M 11 x 1.5mm x 1xD |
| 56364 | INSERTO REPARACION ROSCAS - 3300 - 11,00X1,50-1,5XD | M 11 x 1.5mm x 1 x 5xD |
| 56365 | INSERTO REPARACION ROSCAS - 3300 - 11,00X1,50-2,0XD | M 11 x 1.5mm x 2xD |
| 56366 | INSERTO REPARACION ROSCAS - 3300 - 11,00X1,50-2,5XD | M 11 x 1.5mm x 2 x 5XD |
| 56367 | INSERTO REPARACION ROSCAS - 3300 - 11,00X1,50-3,0XD | M 11 x 1.5mm x 3xD |
| 56369 | INSERTO REPARACION ROSCAS - 3300 - 12,00X1,00-1,0XD | M 12 x 1mm x 1xD |
| 56371 | INSERTO REPARACION ROSCAS - 3300 - 12,00X1,00-1,5XD | M 12 x 1mm x 1 x 5xD |
| 56372 | INSERTO REPARACION ROSCAS - 3300 - 12,00X1,00-2,0XD | M 12 x 1mm x 2xD |
| 56373 | INSERTO REPARACION ROSCAS - 3300 - 12,00X1,00-2,5XD | M 12 x 1mm x 2 x 5XD |
| 56374 | INSERTO REPARACION ROSCAS - 3300 - 12,00X1,00-3,0XD | M 12 x 1mm x 3xD |
| 56375 | INSERTO REPARACION ROSCAS - 3300 - 12,00X1,25-1,0XD | M 12 x 1.25mm x 1xD |
| 56377 | INSERTO REPARACION ROSCAS - 3300 - 12,00X1,25-1,5XD | M 12 x 1.25mm x 1 x 5xD |
| 56378 | INSERTO REPARACION ROSCAS - 3300 - 12,00X1,25-2,0XD | M 12 x 1.25mm x 2xD |
| 56379 | INSERTO REPARACION ROSCAS - 3300 - 12,00X1,25-2,5XD | M 12 x 1.25mm x 2 x 5XD |
| 56381 | INSERTO REPARACION ROSCAS - 3300 - 12,00X1,25-3,0XD | M 12 x 1.25mm x 3xD |
| 56384 | INSERTO REPARACION ROSCAS - 3300 - 12,00X1,50-1,0XD | M 12 x 1.5mm x 1xD |
| 56385 | INSERTO REPARACION ROSCAS - 3300 - 12,00X1,50-1,5XD | M 12 x 1.5mm x 1 x 5xD |
| 56387 | INSERTO REPARACION ROSCAS - 3300 - 12,00X1,50-2,0XD | M 12 x 1.5mm x 2xD |
| 56388 | INSERTO REPARACION ROSCAS - 3300 - 12,00X1,50-2,5XD | M 12 x 1.5mm x 2 x 5XD |
| 56389 | INSERTO REPARACION ROSCAS - 3300 - 12,00X1,50-3,0XD | M 12 x 1.5mm x 3xD |
| 56390 | INSERTO REPARACION ROSCAS - 3300 - 12,00X1,75-1,0XD | M 12 x 1.75mm x 1xD |
| 56391 | INSERTO REPARACION ROSCAS - 3300 - 12,00X1,75-1,5XD | M 12 x 1.75mm x 1 x 5xD |
| 56392 | INSERTO REPARACION ROSCAS - 3300 - 12,00X1,75-2,0XD | M 12 x 1.75mm x 2xD |
| 56393 | INSERTO REPARACION ROSCAS - 3300 - 12,00X1,75-2,5XD | M 12 x 1.75mm x 2 x 5XD |
| 56394 | INSERTO REPARACION ROSCAS - 3300 - 12,00X1,75-3,0XD | M 12 x 1.75mm x 3xD |
| 56395 | INSERTO REPARACION ROSCAS - 3300 - 14,00X1,00-1,0XD | M 14 x 1mm x 1xD |
| 56396 | INSERTO REPARACION ROSCAS - 3300 - 14,00X1,00-1,5XD | M 14 x 1mm x 1 x 5xD |
| 56397 | INSERTO REPARACION ROSCAS - 3300 - 14,00X1,00-2,0XD | M 14 x 1mm x 2xD |
| 56399 | INSERTO REPARACION ROSCAS - 3300 - 14,00X1,00-2,5XD | M 14 x 1mm x 2 x 5XD |
| 56400 | INSERTO REPARACION ROSCAS - 3300 - 14,00X1,00-3,0XD | M 14 x 1mm x 3xD |
| 56401 | INSERTO REPARACION ROSCAS - 3300 - 14,00X1,25-1,0XD | M 14 x 1.25mm x 1xD |
| 56402 | INSERTO REPARACION ROSCAS - 3300 - 14,00X1,25-1,5XD | M 14 x 1.25mm x 1 x 5xD |
| 56403 | INSERTO REPARACION ROSCAS - 3300 - 14,00X1,25-2,0XD | M 14 x 1.25mm x 2xD |
| 56404 | INSERTO REPARACION ROSCAS - 3300 - 14,00X1,25-2,5XD | M 14 x 1.25mm x 2 x 5XD |
| 56405 | INSERTO REPARACION ROSCAS - 3300 - 14,00X1,25-3,0XD | M 14 x 1.25mm x 3xD |
| 56406 | INSERTO REPARACION ROSCAS - 3300 - 14,00X1,50-1,0XD | M 14 x 1.5mm x 1xD |
| 56407 | INSERTO REPARACION ROSCAS - 3300 - 14,00X1,50-1,5XD | M 14 x 1.5mm x 1 x 5xD |
| 56408 | INSERTO REPARACION ROSCAS - 3300 - 14,00X1,50-2,0XD | M 14 x 1.5mm x 2xD |
| 56409 | INSERTO REPARACION ROSCAS - 3300 - 14,00X1,50-2,5XD | M 14 x 1.5mm x 2 x 5XD |
| 56410 | INSERTO REPARACION ROSCAS - 3300 - 14,00X1,50-3,0XD | M 14 x 1.5mm x 3xD |
| 58844 | INSERTO REPARACION ROSCAS - 3300 - 14,00X2,00-1,0XD | M 14 x 2mm x 1xD |
| 58845 | INSERTO REPARACION ROSCAS - 3300 - 14,00X2,00-1,5XD | M 14 x 2mm x 1 x 5xD |
| 58846 | INSERTO REPARACION ROSCAS - 3300 - 14,00X2,00-2,0XD | M 14 x 2mm x 2xD |
| 58847 | INSERTO REPARACION ROSCAS - 3300 - 14,00X2,00-2,5XD | M 14 x 2mm x 2 x 5XD |
| 58848 | INSERTO REPARACION ROSCAS - 3300 - 14,00X2,00-3,0XD | M 14 x 2mm x 3xD |
| 56411 | INSERTO REPARACION ROSCAS - 3300 - 16,00X1,50-1,0XD | M 16 x 1.5mm x 1xD |
| 56412 | INSERTO REPARACION ROSCAS - 3300 - 16,00X1,50-1,5XD | M 16 x 1.5mm x 1 x 5xD |
| 56413 | INSERTO REPARACION ROSCAS - 3300 - 16,00X1,50-2,0XD | M 16 x 1.5mm x 2xD |
| 56414 | INSERTO REPARACION ROSCAS - 3300 - 16,00X1,50-2,5XD | M 16 x 1.5mm x 2 x 5XD |
| 56416 | INSERTO REPARACION ROSCAS - 3300 - 16,00X1,50-3,0XD | M 16 x 1.5mm x 3xD |
| 56417 | INSERTO REPARACION ROSCAS - 3300 - 16,00X2,00-1,0XD | M 16 x 2mm x 1xD |
| 56419 | INSERTO REPARACION ROSCAS - 3300 - 16,00X2,00-1,5XD | M 16 x 2mm x 1 x 5xD |
| 56420 | INSERTO REPARACION ROSCAS - 3300 - 16,00X2,00-2,0XD | M 16 x 2mm x 2xD |
| 56422 | INSERTO REPARACION ROSCAS - 3300 - 16,00X2,00-2,5XD | M 16 x 2mm x 2 x 5XD |
| 56423 | INSERTO REPARACION ROSCAS - 3300 - 16,00X2,00-3,0XD | M 16 x 2mm x 3xD |
| 56425 | INSERTO REPARACION ROSCAS - 3300 - 18,00X2,00-1,0XD | M 18 x 2mm x 1xD |
| 56427 | INSERTO REPARACION ROSCAS - 3300 - 18,00X2,00-1,5XD | M 18 x 2mm x 1 x 5xD |
| 56430 | INSERTO REPARACION ROSCAS - 3300 - 18,00X2,00-2,0XD | M 18 x 2mm x 2xD |
| 56431 | INSERTO REPARACION ROSCAS - 3300 - 18,00X2,00-2,5XD | M 18 x 2mm x 2 x 5XD |
| 56433 | INSERTO REPARACION ROSCAS - 3300 - 18,00X2,00-3,0XD | M 18 x 2mm x 3xD |
| 56434 | INSERTO REPARACION ROSCAS - 3300 - 18,00X2,50-1,0XD | M 18 x 2.5mm x 1xD |
| 56436 | INSERTO REPARACION ROSCAS - 3300 - 18,00X2,50-1,5XD | M 18 x 2.5mm x 1 x 5xD |
| 56439 | INSERTO REPARACION ROSCAS - 3300 - 18,00X2,50-2,0XD | M 18 x 2.5mm x 2xD |
| 56440 | INSERTO REPARACION ROSCAS - 3300 - 18,00X2,50-2,5XD | M 18 x 2.5mm x 2 x 5XD |
| 56442 | INSERTO REPARACION ROSCAS - 3300 - 18,00X2,50-3,0XD | M 18 x 2.5mm x 3xD |
| 67788 | INSERTO REPARACION ROSCAS - 3300 - 20,00X2,50-1,0XD | M 20 x 2.5mm x 1xD |
| 67790 | INSERTO REPARACION ROSCAS - 3300 - 20,00X2,50-1,5XD | M 20 x 2.5mm x 1 x 5xD |
| 67792 | INSERTO REPARACION ROSCAS - 3300 - 20,00X2,50-2,0XD | M 20 x 2.5mm x 2xD |
| 67794 | INSERTO REPARACION ROSCAS - 3300 - 20,00X2,50-2,5XD | M 20 x 2.5mm x 2 x 5XD |
| 70628 | INSERTO REPARACION ROSCAS - 3300 - 20,00X2,50-3,0XD | M 20 x 2.5mm x 3xD |
| 56445 | INSERTO REPARACION ROSCAS - 3300 - 22,00X2,50-1,0XD | M 22 x 2.5mm x 1xD |
| 56446 | INSERTO REPARACION ROSCAS - 3300 - 22,00X2,50-1,5XD | M 22 x 2.5mm x 1 x 5xD |
| 56448 | INSERTO REPARACION ROSCAS - 3300 - 22,00X2,50-2,0XD | M 22 x 2.5mm x 2xD |
| 56451 | INSERTO REPARACION ROSCAS - 3300 - 22,00X2,50-2,5XD | M 22 x 2.5mm x 2 x 5XD |
| 56452 | INSERTO REPARACION ROSCAS - 3300 - 22,00X2,50-3,0XD | M 22 x 2.5mm x 3xD |
| 56454 | INSERTO REPARACION ROSCAS - 3300 - 24,00X2,00-1,0XD | M 24 x 2mm x 1xD |
| 56457 | INSERTO REPARACION ROSCAS - 3300 - 24,00X2,00-1,5XD | M 24 x 2mm x 1 x 5xD |
| 56458 | INSERTO REPARACION ROSCAS - 3300 - 24,00X2,00-2,0XD | M 24 x 2mm x 2xD |
| 56460 | INSERTO REPARACION ROSCAS - 3300 - 24,00X2,00-2,5XD | M 24 x 2mm x 2 x 5XD |
| 56463 | INSERTO REPARACION ROSCAS - 3300 - 24,00X2,00-3,0XD | M 24 x 2mm x 3xD |
| 56464 | INSERTO REPARACION ROSCAS - 3300 - 24,00X3,00-1,0XD | M 24 x 3mm x 1xD |
| 56466 | INSERTO REPARACION ROSCAS - 3300 - 24,00X3,00-1,5XD | M 24 x 3mm x 1 x 5xD |
| 56467 | INSERTO REPARACION ROSCAS - 3300 - 24,00X3,00-2,0XD | M 24 x 3mm x 2xD |
| 56473 | INSERTO REPARACION ROSCAS - 3300 - 24,00X3,00-2,5XD | M 24 x 3mm x 2 x 5XD |
| 56476 | INSERTO REPARACION ROSCAS - 3300 - 24,00X3,00-3,0XD | M 24 x 3mm x 3xD |
