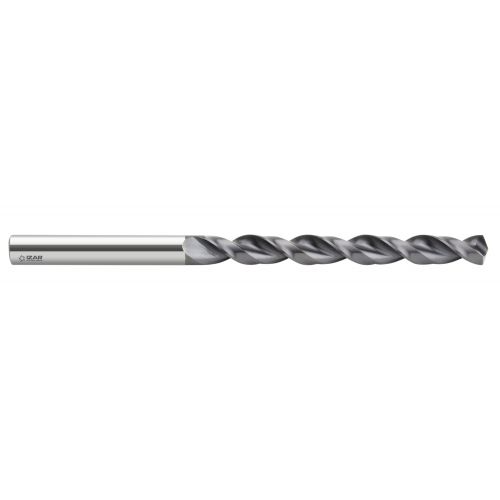

REF. 1000 BROCA HSS Co DIN338TS
- Agujeros tolerancia IT8-9. Serie Corta
- Perfil "S"
- Filo Corregido "U"
- Especial para aceros aleados tratados y bonificados, fundición, aleaciones de aluminio-magnesio con más del 10% de silicio, termoplástico
Ángulo Punta: 135º
Aplicación Alternativa: P.3
Aplicación Recomendada: K.1//K.2//N.5//N.6//P.2
DIN: 338
Grupo Materiales Trabajo: Aceros//Aluminio-Magnesio//Fundición//Sintéticos-Plásticos
Material específico Trabajo: Aceros aleados (<300 HB / <1000 N/mm2)//Aceros aleados tratados / bonificados (300-400 HB / 1000-1300 N/mm2)//Aleaciones Al-Mg Si > 10% (<180 HB / <600 N/mm2)//Fundición (200-300 HB / 700-1000 N/mm2)//Fundición (<200 HB / <700 N/mm2)//Termoplásticos
Serie: Corta
Tipo Afilado: Filo Corregido "U"
Tipo DIN: TS
Tipo Mango: Cilíndrico
Tolerancia Diámetro Corte: h8
P.1 Aceros construcción/carbono (<250 HB/<850 N/mm2) Avance (mm/rev.): 0.16
P.1 Velocidad Corte (m/min.): 28-35
Operación: Taladrado
Tipo Herramienta: Broca
Listado de referencias
| Referencia | Descripción | Recubrimiento | Diámetro Corte |
|---|---|---|---|
| 22232 | BROCA HSS Co DIN338TS - 1000 - 2,00 mm | Sin recubrimiento | 2mm |
| 14496 | BROCA HSS Co DIN338TS - 1000 - 2,10 mm | Sin recubrimiento | 2.1mm |
| 14497 | BROCA HSS Co DIN338TS - 1000 - 2,30 mm | Sin recubrimiento | 2.3mm |
| 22233 | BROCA HSS Co DIN338TS - 1000 - 2,50 mm | Sin recubrimiento | 2.5mm |
| 14500 | BROCA HSS Co DIN338TS - 1000 - 2,70 mm | Sin recubrimiento | 2.7mm |
| 14455 | BROCA HSS Co DIN338TS - 1000 - 2,75 mm | Sin recubrimiento | 2.75mm |
| 22234 | BROCA HSS Co DIN338TS - 1000 - 3,00 mm | Sin recubrimiento | 3mm |
| 14502 | BROCA HSS Co DIN338TS - 1000 - 3,10 mm | Sin recubrimiento | 3.1mm |
| 22235 | BROCA HSS Co DIN338TS - 1000 - 3,20 mm | Sin recubrimiento | 3.2mm |
| 14457 | BROCA HSS Co DIN338TS - 1000 - 3,25 mm | Sin recubrimiento | 3.25mm |
| 14503 | BROCA HSS Co DIN338TS - 1000 - 3,30 mm | Sin recubrimiento | 3.3mm |
| 22236 | BROCA HSS Co DIN338TS - 1000 - 3,50 mm | Sin recubrimiento | 3.5mm |
| 14925 | BROCA HSS Co DIN338TS - 1000 - 3,60 mm | Sin recubrimiento | 3.6mm |
| 14508 | BROCA HSS Co DIN338TS - 1000 - 3,70 mm | Sin recubrimiento | 3.7mm |
| 14458 | BROCA HSS Co DIN338TS - 1000 - 3,75 mm | Sin recubrimiento | 3.75mm |
| 14634 | BROCA HSS Co DIN338TS - 1000 - 3,90 mm | Sin recubrimiento | 3.9mm |
| 22237 | BROCA HSS Co DIN338TS - 1000 - 4,00 mm | Sin recubrimiento | 4mm |
| 14511 | BROCA HSS Co DIN338TS - 1000 - 4,10 mm | Sin recubrimiento | 4.1mm |
| 22238 | BROCA HSS Co DIN338TS - 1000 - 4,20 mm | Sin recubrimiento | 4.2mm |
| 14461 | BROCA HSS Co DIN338TS - 1000 - 4,25 mm | Sin recubrimiento | 4.25mm |
| 14514 | BROCA HSS Co DIN338TS - 1000 - 4,30 mm | Sin recubrimiento | 4.3mm |
| 14635 | BROCA HSS Co DIN338TS - 1000 - 4,40 mm | Sin recubrimiento | 4.4mm |
| 22239 | BROCA HSS Co DIN338TS - 1000 - 4,50 mm | Sin recubrimiento | 4.5mm |
| 14637 | BROCA HSS Co DIN338TS - 1000 - 4,70 mm | Sin recubrimiento | 4.7mm |
| 14464 | BROCA HSS Co DIN338TS - 1000 - 4,75 mm | Sin recubrimiento | 4.75mm |
| 14641 | BROCA HSS Co DIN338TS - 1000 - 4,80 mm | Sin recubrimiento | 4.8mm |
| 22240 | BROCA HSS Co DIN338TS - 1000 - 5,00 mm | Sin recubrimiento | 5mm |
| 22241 | BROCA HSS Co DIN338TS - 1000 - 5,10 mm | Sin recubrimiento | 5.1mm |
| 14517 | BROCA HSS Co DIN338TS - 1000 - 5,20 mm | Sin recubrimiento | 5.2mm |
| 14466 | BROCA HSS Co DIN338TS - 1000 - 5,25 mm | Sin recubrimiento | 5.25mm |
| 14643 | BROCA HSS Co DIN338TS - 1000 - 5,30 mm | Sin recubrimiento | 5.3mm |
| 22242 | BROCA HSS Co DIN338TS - 1000 - 5,50 mm | Sin recubrimiento | 5.5mm |
| 14646 | BROCA HSS Co DIN338TS - 1000 - 5,60 mm | Sin recubrimiento | 5.6mm |
| 14467 | BROCA HSS Co DIN338TS - 1000 - 5,75 mm | Sin recubrimiento | 5.75mm |
| 14523 | BROCA HSS Co DIN338TS - 1000 - 5,80 mm | Sin recubrimiento | 5.8mm |
| 14647 | BROCA HSS Co DIN338TS - 1000 - 5,90 mm | Sin recubrimiento | 5.9mm |
| 22243 | BROCA HSS Co DIN338TS - 1000 - 6,00 mm | Sin recubrimiento | 6mm |
| 14526 | BROCA HSS Co DIN338TS - 1000 - 6,20 mm | Sin recubrimiento | 6.2mm |
| 22244 | BROCA HSS Co DIN338TS - 1000 - 6,50 mm | Sin recubrimiento | 6.5mm |
| 14527 | BROCA HSS Co DIN338TS - 1000 - 6,80 mm | Sin recubrimiento | 6.8mm |
| 22245 | BROCA HSS Co DIN338TS - 1000 - 7,00 mm | Sin recubrimiento | 7mm |
| 14649 | BROCA HSS Co DIN338TS - 1000 - 7,20 mm | Sin recubrimiento | 7.2mm |
| 14529 | BROCA HSS Co DIN338TS - 1000 - 7,50 mm | Sin recubrimiento | 7.5mm |
| 22246 | BROCA HSS Co DIN338TS - 1000 - 8,00 mm | Sin recubrimiento | 8mm |
| 14533 | BROCA HSS Co DIN338TS - 1000 - 8,20 mm | Sin recubrimiento | 8.2mm |
| 22247 | BROCA HSS Co DIN338TS - 1000 - 8,50 mm | Sin recubrimiento | 8.5mm |
| 14653 | BROCA HSS Co DIN338TS - 1000 - 8,80 mm | Sin recubrimiento | 8.8mm |
| 22248 | BROCA HSS Co DIN338TS - 1000 - 9,00 mm | Sin recubrimiento | 9mm |
| 14535 | BROCA HSS Co DIN338TS - 1000 - 9,50 mm | Sin recubrimiento | 9.5mm |
| 14655 | BROCA HSS Co DIN338TS - 1000 - 9,80 mm | Sin recubrimiento | 9.8mm |
| 22249 | BROCA HSS Co DIN338TS - 1000 - 10,00 mm | Sin recubrimiento | 10mm |
| 39627 | BROCA HSS Co DIN338TS - 1000 - 10,20 mm | Sin recubrimiento | 10.2mm |
| 14659 | BROCA HSS Co DIN338TS - 1000 - 10,50 mm | Sin recubrimiento | 10.5mm |
| 22250 | BROCA HSS Co DIN338TS - 1000 - 11,00 mm | Sin recubrimiento | 11mm |
| 14664 | BROCA HSS Co DIN338TS - 1000 - 11,50 mm | Sin recubrimiento | 11.5mm |
| 22251 | BROCA HSS Co DIN338TS - 1000 - 12,00 mm | Sin recubrimiento | 12mm |
| 39600 | BROCA HSS Co DIN338TS - 1000 - 12,50 mm | Sin recubrimiento | 12.5mm |
| 22252 | BROCA HSS Co DIN338TS - 1000 - 13,00 mm | Sin recubrimiento | 13mm |
| 13524 | BROCA HSS Co DIN338TS - 1000 - 2,00 mm - TIALSIN | TIALSIN | 2mm |
| 21550 | BROCA HSS Co DIN338TS - 1000 - 2,10 mm - TIALSIN | TIALSIN | 2.1mm |
| 21552 | BROCA HSS Co DIN338TS - 1000 - 2,30 mm - TIALSIN | TIALSIN | 2.3mm |
| 13527 | BROCA HSS Co DIN338TS - 1000 - 2,50 mm - TIALSIN | TIALSIN | 2.5mm |
| 24854 | BROCA HSS Co DIN338TS - 1000 - 2,70 mm - TIALSIN | TIALSIN | 2.7mm |
| 24855 | BROCA HSS Co DIN338TS - 1000 - 2,75 mm - TIALSIN | TIALSIN | 2.75mm |
| 13530 | BROCA HSS Co DIN338TS - 1000 - 3,00 mm - TIALSIN | TIALSIN | 3mm |
| 14599 | BROCA HSS Co DIN338TS - 1000 - 3,10 mm - TIALSIN | TIALSIN | 3.1mm |
| 13533 | BROCA HSS Co DIN338TS - 1000 - 3,20 mm - TIALSIN | TIALSIN | 3.2mm |
| 14479 | BROCA HSS Co DIN338TS - 1000 - 3,25 mm - TIALSIN | TIALSIN | 3.25mm |
| 14601 | BROCA HSS Co DIN338TS - 1000 - 3,30 mm - TIALSIN | TIALSIN | 3.3mm |
| 13536 | BROCA HSS Co DIN338TS - 1000 - 3,50 mm - TIALSIN | TIALSIN | 3.5mm |
| 24856 | BROCA HSS Co DIN338TS - 1000 - 3,60 mm - TIALSIN | TIALSIN | 3.6mm |
| 24857 | BROCA HSS Co DIN338TS - 1000 - 3,70 mm - TIALSIN | TIALSIN | 3.7mm |
| 24858 | BROCA HSS Co DIN338TS - 1000 - 3,75 mm - TIALSIN | TIALSIN | 3.75mm |
| 24859 | BROCA HSS Co DIN338TS - 1000 - 3,90 mm - TIALSIN | TIALSIN | 3.9mm |
| 13539 | BROCA HSS Co DIN338TS - 1000 - 4,00 mm - TIALSIN | TIALSIN | 4mm |
| 14605 | BROCA HSS Co DIN338TS - 1000 - 4,10 mm - TIALSIN | TIALSIN | 4.1mm |
| 13542 | BROCA HSS Co DIN338TS - 1000 - 4,20 mm - TIALSIN | TIALSIN | 4.2mm |
| 14482 | BROCA HSS Co DIN338TS - 1000 - 4,25 mm - TIALSIN | TIALSIN | 4.25mm |
| 14607 | BROCA HSS Co DIN338TS - 1000 - 4,30 mm - TIALSIN | TIALSIN | 4.3mm |
| 24860 | BROCA HSS Co DIN338TS - 1000 - 4,40 mm - TIALSIN | TIALSIN | 4.4mm |
| 13545 | BROCA HSS Co DIN338TS - 1000 - 4,50 mm - TIALSIN | TIALSIN | 4.5mm |
| 24861 | BROCA HSS Co DIN338TS - 1000 - 4,70 mm - TIALSIN | TIALSIN | 4.7mm |
| 24862 | BROCA HSS Co DIN338TS - 1000 - 4,75 mm - TIALSIN | TIALSIN | 4.75mm |
| 24863 | BROCA HSS Co DIN338TS - 1000 - 4,80 mm - TIALSIN | TIALSIN | 4.8mm |
| 13548 | BROCA HSS Co DIN338TS - 1000 - 5,00 mm - TIALSIN | TIALSIN | 5mm |
| 13551 | BROCA HSS Co DIN338TS - 1000 - 5,10 mm - TIALSIN | TIALSIN | 5.1mm |
| 24864 | BROCA HSS Co DIN338TS - 1000 - 5,20 mm - TIALSIN | TIALSIN | 5.2mm |
| 14485 | BROCA HSS Co DIN338TS - 1000 - 5,25 mm - TIALSIN | TIALSIN | 5.25mm |
| 24865 | BROCA HSS Co DIN338TS - 1000 - 5,30 mm - TIALSIN | TIALSIN | 5.3mm |
| 13554 | BROCA HSS Co DIN338TS - 1000 - 5,50 mm - TIALSIN | TIALSIN | 5.5mm |
| 24866 | BROCA HSS Co DIN338TS - 1000 - 5,60 mm - TIALSIN | TIALSIN | 5.6mm |
| 24867 | BROCA HSS Co DIN338TS - 1000 - 5,75 mm - TIALSIN | TIALSIN | 5.75mm |
| 24868 | BROCA HSS Co DIN338TS - 1000 - 5,80 mm - TIALSIN | TIALSIN | 5.8mm |
| 24869 | BROCA HSS Co DIN338TS - 1000 - 5,90 mm - TIALSIN | TIALSIN | 5.9mm |
| 13557 | BROCA HSS Co DIN338TS - 1000 - 6,00 mm - TIALSIN | TIALSIN | 6mm |
| 24870 | BROCA HSS Co DIN338TS - 1000 - 6,20 mm - TIALSIN | TIALSIN | 6.2mm |
| 13560 | BROCA HSS Co DIN338TS - 1000 - 6,50 mm - TIALSIN | TIALSIN | 6.5mm |
| 14610 | BROCA HSS Co DIN338TS - 1000 - 6,80 mm - TIALSIN | TIALSIN | 6.8mm |
| 13563 | BROCA HSS Co DIN338TS - 1000 - 7,00 mm - TIALSIN | TIALSIN | 7mm |
| 24871 | BROCA HSS Co DIN338TS - 1000 - 7,20 mm - TIALSIN | TIALSIN | 7.2mm |
| 14611 | BROCA HSS Co DIN338TS - 1000 - 7,50 mm - TIALSIN | TIALSIN | 7.5mm |
| 13566 | BROCA HSS Co DIN338TS - 1000 - 8,00 mm - TIALSIN | TIALSIN | 8mm |
| 24872 | BROCA HSS Co DIN338TS - 1000 - 8,20 mm - TIALSIN | TIALSIN | 8.2mm |
| 13569 | BROCA HSS Co DIN338TS - 1000 - 8,50 mm - TIALSIN | TIALSIN | 8.5mm |
| 24873 | BROCA HSS Co DIN338TS - 1000 - 8,80 mm - TIALSIN | TIALSIN | 8.8mm |
| 13572 | BROCA HSS Co DIN338TS - 1000 - 9,00 mm - TIALSIN | TIALSIN | 9mm |
| 14613 | BROCA HSS Co DIN338TS - 1000 - 9,50 mm - TIALSIN | TIALSIN | 9.5mm |
| 24874 | BROCA HSS Co DIN338TS - 1000 - 9,80 mm - TIALSIN | TIALSIN | 9.8mm |
| 14363 | BROCA HSS Co DIN338TS - 1000 - 10,00 mm - TIALSIN | TIALSIN | 10mm |
| 62785 | BROCA HSS Co DIN338TS - 1000 - 10,20 mm - TIALSIN | TIALSIN | 10.2mm |
| 14676 | BROCA HSS Co DIN338TS - 1000 - 10,50 mm - TIALSIN | TIALSIN | 10.5mm |
| 14364 | BROCA HSS Co DIN338TS - 1000 - 11,00 mm - TIALSIN | TIALSIN | 11mm |
| 14677 | BROCA HSS Co DIN338TS - 1000 - 11,50 mm - TIALSIN | TIALSIN | 11.5mm |
| 14365 | BROCA HSS Co DIN338TS - 1000 - 12,00 mm - TIALSIN | TIALSIN | 12mm |
| 62810 | BROCA HSS Co DIN338TS - 1000 - 12,50 mm - TIALSIN | TIALSIN | 12.5mm |
| 14366 | BROCA HSS Co DIN338TS - 1000 - 13,00 mm - TIALSIN | TIALSIN | 13mm |
