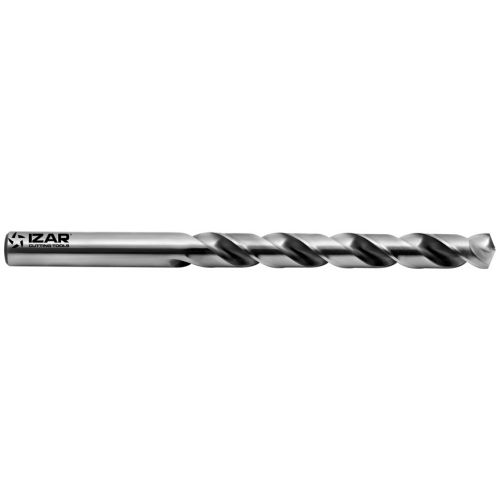

REF. 1020 BROCA HSS Co DIN338W INOX
- Especial Inox Austenítico. Uso en otros aceros inoxidables, aluminio y magnesio
- Para taladro portátil en chapas de acero de hasta 5 mm de espesor
- Serie corta DIN 338W. Punta 135º. Afilado en cruz tipo C (split point)
- Hélice a 40º para una mejor evacuación de la viruta
Ángulo Hélice: 40º
Ángulo Punta: 135º
Aplicación Recomendada: M//N.3//N.4//N.5
DIN: 338
Especial para…: Taladro manual
Grupo Materiales Trabajo: Aluminio//Inoxidable
Material específico Trabajo: Al-Mg no aleado (<100 HB / <350 N/mm2)//Aleaciones Al-Mg Si > 10% (<180 HB / <600 N/mm2)//Aleaciones Al-Mg Si < 10% (<180 HB / <600 N/mm2)//INOX austenítico (<250 HB / <850 N/mm2)
Serie: Corta
Tipo Afilado: Split Point DIN 1412 C ≥ 2 mm
Tipo DIN: W
Tipo Mango: Cilíndrico
Tolerancia Diámetro Corte: h8
M Velocidad Corte (m/min.): 6-12
N.3 Velocidad Corte (m/min.): 60-80
N.4 Velocidad Corte (m/min.): 60-80
N.5 Velocidad Corte (m/min.): 40-50
Operación: Taladrado
Recubrimiento: Sin recubrimiento
Tipo Herramienta: Broca
Ángulo Punta: 135º
Aplicación Recomendada: M//N.3//N.4//N.5
DIN: 338
Especial para…: Taladro manual
Grupo Materiales Trabajo: Aluminio//Inoxidable
Material específico Trabajo: Al-Mg no aleado (<100 HB / <350 N/mm2)//Aleaciones Al-Mg Si > 10% (<180 HB / <600 N/mm2)//Aleaciones Al-Mg Si < 10% (<180 HB / <600 N/mm2)//INOX austenítico (<250 HB / <850 N/mm2)
Serie: Corta
Tipo Afilado: Split Point DIN 1412 C ≥ 2 mm
Tipo DIN: W
Tipo Mango: Cilíndrico
Tolerancia Diámetro Corte: h8
M Velocidad Corte (m/min.): 6-12
N.3 Velocidad Corte (m/min.): 60-80
N.4 Velocidad Corte (m/min.): 60-80
N.5 Velocidad Corte (m/min.): 40-50
Operación: Taladrado
Recubrimiento: Sin recubrimiento
Tipo Herramienta: Broca
Listado de referencias
| Referencia | Descripción | Diámetro Corte |
|---|---|---|
| 14115 | BROCA HSS Co DIN338W INOX - 1020 - 1,00 mm | 1mm |
| 14116 | BROCA HSS Co DIN338W INOX - 1020 - 1,25 mm | 1.25mm |
| 14117 | BROCA HSS Co DIN338W INOX - 1020 - 1,50 mm | 1.5mm |
| 21615 | BROCA HSS Co DIN338W INOX - 1020 - 2,00 mm | 2mm |
| 13961 | BROCA HSS Co DIN338W INOX - 1020 - 2,10 mm | 2.1mm |
| 13962 | BROCA HSS Co DIN338W INOX - 1020 - 2,20 mm | 2.2mm |
| 21616 | BROCA HSS Co DIN338W INOX - 1020 - 2,25 mm | 2.25mm |
| 13963 | BROCA HSS Co DIN338W INOX - 1020 - 2,30 mm | 2.3mm |
| 13965 | BROCA HSS Co DIN338W INOX - 1020 - 2,40 mm | 2.4mm |
| 21618 | BROCA HSS Co DIN338W INOX - 1020 - 2,50 mm | 2.5mm |
| 13966 | BROCA HSS Co DIN338W INOX - 1020 - 2,60 mm | 2.6mm |
| 13968 | BROCA HSS Co DIN338W INOX - 1020 - 2,70 mm | 2.7mm |
| 21625 | BROCA HSS Co DIN338W INOX - 1020 - 2,75 mm | 2.75mm |
| 12964 | BROCA HSS Co DIN338W INOX - 1020 - 2,80 mm | 2.8mm |
| 13969 | BROCA HSS Co DIN338W INOX - 1020 - 2,90 mm | 2.9mm |
| 16283 | BROCA HSS Co DIN338W INOX - 1020 - 3,00 mm | 3mm |
| 17970 | BROCA HSS Co DIN338W INOX - 1020 - 3,10 mm | 3.1mm |
| 16284 | BROCA HSS Co DIN338W INOX - 1020 - 3,20 mm | 3.2mm |
| 16285 | BROCA HSS Co DIN338W INOX - 1020 - 3,25 mm | 3.25mm |
| 16286 | BROCA HSS Co DIN338W INOX - 1020 - 3,30 mm | 3.3mm |
| 13971 | BROCA HSS Co DIN338W INOX - 1020 - 3,40 mm | 3.4mm |
| 16287 | BROCA HSS Co DIN338W INOX - 1020 - 3,50 mm | 3.5mm |
| 13972 | BROCA HSS Co DIN338W INOX - 1020 - 3,60 mm | 3.6mm |
| 14120 | BROCA HSS Co DIN338W INOX - 1020 - 3,70 mm | 3.7mm |
| 16288 | BROCA HSS Co DIN338W INOX - 1020 - 3,75 mm | 3.75mm |
| 12507 | BROCA HSS Co DIN338W INOX - 1020 - 3,80 mm | 3.8mm |
| 13974 | BROCA HSS Co DIN338W INOX - 1020 - 3,90 mm | 3.9mm |
| 16289 | BROCA HSS Co DIN338W INOX - 1020 - 4,00 mm | 4mm |
| 16290 | BROCA HSS Co DIN338W INOX - 1020 - 4,10 mm | 4.1mm |
| 16291 | BROCA HSS Co DIN338W INOX - 1020 - 4,20 mm | 4.2mm |
| 16292 | BROCA HSS Co DIN338W INOX - 1020 - 4,25 mm | 4.25mm |
| 14122 | BROCA HSS Co DIN338W INOX - 1020 - 4,30 mm | 4.3mm |
| 13975 | BROCA HSS Co DIN338W INOX - 1020 - 4,40 mm | 4.4mm |
| 16293 | BROCA HSS Co DIN338W INOX - 1020 - 4,50 mm | 4.5mm |
| 13979 | BROCA HSS Co DIN338W INOX - 1020 - 4,60 mm | 4.6mm |
| 13981 | BROCA HSS Co DIN338W INOX - 1020 - 4,70 mm | 4.7mm |
| 16294 | BROCA HSS Co DIN338W INOX - 1020 - 4,75 mm | 4.75mm |
| 14123 | BROCA HSS Co DIN338W INOX - 1020 - 4,80 mm | 4.8mm |
| 13983 | BROCA HSS Co DIN338W INOX - 1020 - 4,90 mm | 4.9mm |
| 16295 | BROCA HSS Co DIN338W INOX - 1020 - 5,00 mm | 5mm |
| 16296 | BROCA HSS Co DIN338W INOX - 1020 - 5,10 mm | 5.1mm |
| 28626 | BROCA HSS Co DIN338W INOX - 1020 - 5,20 mm | 5.2mm |
| 16297 | BROCA HSS Co DIN338W INOX - 1020 - 5,25 mm | 5.25mm |
| 13984 | BROCA HSS Co DIN338W INOX - 1020 - 5,30 mm | 5.3mm |
| 13986 | BROCA HSS Co DIN338W INOX - 1020 - 5,40 mm | 5.4mm |
| 16298 | BROCA HSS Co DIN338W INOX - 1020 - 5,50 mm | 5.5mm |
| 13987 | BROCA HSS Co DIN338W INOX - 1020 - 5,60 mm | 5.6mm |
| 25134 | BROCA HSS Co DIN338W INOX - 1020 - 5,70 mm | 5.7mm |
| 16299 | BROCA HSS Co DIN338W INOX - 1020 - 5,75 mm | 5.75mm |
| 13989 | BROCA HSS Co DIN338W INOX - 1020 - 5,80 mm | 5.8mm |
| 13991 | BROCA HSS Co DIN338W INOX - 1020 - 5,90 mm | 5.9mm |
| 16302 | BROCA HSS Co DIN338W INOX - 1020 - 6,00 mm | 6mm |
| 13993 | BROCA HSS Co DIN338W INOX - 1020 - 6,10 mm | 6.1mm |
| 13994 | BROCA HSS Co DIN338W INOX - 1020 - 6,20 mm | 6.2mm |
| 21627 | BROCA HSS Co DIN338W INOX - 1020 - 6,25 mm | 6.25mm |
| 14002 | BROCA HSS Co DIN338W INOX - 1020 - 6,30 mm | 6.3mm |
| 14003 | BROCA HSS Co DIN338W INOX - 1020 - 6,40 mm | 6.4mm |
| 16304 | BROCA HSS Co DIN338W INOX - 1020 - 6,50 mm | 6.5mm |
| 14004 | BROCA HSS Co DIN338W INOX - 1020 - 6,60 mm | 6.6mm |
| 14005 | BROCA HSS Co DIN338W INOX - 1020 - 6,70 mm | 6.7mm |
| 21628 | BROCA HSS Co DIN338W INOX - 1020 - 6,75 mm | 6.75mm |
| 16306 | BROCA HSS Co DIN338W INOX - 1020 - 6,80 mm | 6.8mm |
| 14006 | BROCA HSS Co DIN338W INOX - 1020 - 6,90 mm | 6.9mm |
| 16307 | BROCA HSS Co DIN338W INOX - 1020 - 7,00 mm | 7mm |
| 14007 | BROCA HSS Co DIN338W INOX - 1020 - 7,10 mm | 7.1mm |
| 14008 | BROCA HSS Co DIN338W INOX - 1020 - 7,20 mm | 7.2mm |
| 21631 | BROCA HSS Co DIN338W INOX - 1020 - 7,25 mm | 7.25mm |
| 14009 | BROCA HSS Co DIN338W INOX - 1020 - 7,30 mm | 7.3mm |
| 14010 | BROCA HSS Co DIN338W INOX - 1020 - 7,40 mm | 7.4mm |
| 16309 | BROCA HSS Co DIN338W INOX - 1020 - 7,50 mm | 7.5mm |
| 14011 | BROCA HSS Co DIN338W INOX - 1020 - 7,60 mm | 7.6mm |
| 14012 | BROCA HSS Co DIN338W INOX - 1020 - 7,70 mm | 7.7mm |
| 69940 | BROCA HSS Co DIN338W INOX - 1020 - 7,75 mm | 7.75mm |
| 14013 | BROCA HSS Co DIN338W INOX - 1020 - 7,80 mm | 7.8mm |
| 14014 | BROCA HSS Co DIN338W INOX - 1020 - 7,90 mm | 7.9mm |
| 16311 | BROCA HSS Co DIN338W INOX - 1020 - 8,00 mm | 8mm |
| 14015 | BROCA HSS Co DIN338W INOX - 1020 - 8,10 mm | 8.1mm |
| 14016 | BROCA HSS Co DIN338W INOX - 1020 - 8,20 mm | 8.2mm |
| 21633 | BROCA HSS Co DIN338W INOX - 1020 - 8,25 mm | 8.25mm |
| 14017 | BROCA HSS Co DIN338W INOX - 1020 - 8,30 mm | 8.3mm |
| 14018 | BROCA HSS Co DIN338W INOX - 1020 - 8,40 mm | 8.4mm |
| 16313 | BROCA HSS Co DIN338W INOX - 1020 - 8,50 mm | 8.5mm |
| 14019 | BROCA HSS Co DIN338W INOX - 1020 - 8,60 mm | 8.6mm |
| 14020 | BROCA HSS Co DIN338W INOX - 1020 - 8,70 mm | 8.7mm |
| 69938 | BROCA HSS Co DIN338W INOX - 1020 - 8,75 mm | 8.75mm |
| 14021 | BROCA HSS Co DIN338W INOX - 1020 - 8,80 mm | 8.8mm |
| 14022 | BROCA HSS Co DIN338W INOX - 1020 - 8,90 mm | 8.9mm |
| 16314 | BROCA HSS Co DIN338W INOX - 1020 - 9,00 mm | 9mm |
| 14023 | BROCA HSS Co DIN338W INOX - 1020 - 9,10 mm | 9.1mm |
| 14024 | BROCA HSS Co DIN338W INOX - 1020 - 9,20 mm | 9.2mm |
| 69937 | BROCA HSS Co DIN338W INOX - 1020 - 9,25 mm | 9.25mm |
| 14025 | BROCA HSS Co DIN338W INOX - 1020 - 9,30 mm | 9.3mm |
| 14026 | BROCA HSS Co DIN338W INOX - 1020 - 9,40 mm | 9.4mm |
| 16316 | BROCA HSS Co DIN338W INOX - 1020 - 9,50 mm | 9.5mm |
| 14027 | BROCA HSS Co DIN338W INOX - 1020 - 9,60 mm | 9.6mm |
| 14028 | BROCA HSS Co DIN338W INOX - 1020 - 9,70 mm | 9.7mm |
| 69935 | BROCA HSS Co DIN338W INOX - 1020 - 9,75 mm | 9.75mm |
| 14029 | BROCA HSS Co DIN338W INOX - 1020 - 9,80 mm | 9.8mm |
| 14060 | BROCA HSS Co DIN338W INOX - 1020 - 9,90 mm | 9.9mm |
| 16318 | BROCA HSS Co DIN338W INOX - 1020 - 10,00 mm | 10mm |
| 14064 | BROCA HSS Co DIN338W INOX - 1020 - 10,10 mm | 10.1mm |
| 14248 | BROCA HSS Co DIN338W INOX - 1020 - 10,20 mm | 10.2mm |
| 21634 | BROCA HSS Co DIN338W INOX - 1020 - 10,25 mm | 10.25mm |
| 74568 | BROCA HSS Co DIN338W INOX - 1020 - 10,30 mm | 10.3mm |
| 74567 | BROCA HSS Co DIN338W INOX - 1020 - 10,40 mm | 10.4mm |
| 16320 | BROCA HSS Co DIN338W INOX - 1020 - 10,50 mm | 10.5mm |
| 74566 | BROCA HSS Co DIN338W INOX - 1020 - 10,60 mm | 10.6mm |
| 74565 | BROCA HSS Co DIN338W INOX - 1020 - 10,70 mm | 10.7mm |
| 69934 | BROCA HSS Co DIN338W INOX - 1020 - 10,75 mm | 10.75mm |
| 14249 | BROCA HSS Co DIN338W INOX - 1020 - 10,80 mm | 10.8mm |
| 74564 | BROCA HSS Co DIN338W INOX - 1020 - 10,90 mm | 10.9mm |
| 16321 | BROCA HSS Co DIN338W INOX - 1020 - 11,00 mm | 11mm |
| 30587 | BROCA HSS Co DIN338W INOX - 1020 - 11,10 mm | 11.1mm |
| 14250 | BROCA HSS Co DIN338W INOX - 1020 - 11,20 mm | 11.2mm |
| 69932 | BROCA HSS Co DIN338W INOX - 1020 - 11,25 mm | 11.25mm |
| 74563 | BROCA HSS Co DIN338W INOX - 1020 - 11,30 mm | 11.3mm |
| 74562 | BROCA HSS Co DIN338W INOX - 1020 - 11,40 mm | 11.4mm |
| 16322 | BROCA HSS Co DIN338W INOX - 1020 - 11,50 mm | 11.5mm |
| 74561 | BROCA HSS Co DIN338W INOX - 1020 - 11,60 mm | 11.6mm |
| 74560 | BROCA HSS Co DIN338W INOX - 1020 - 11,70 mm | 11.7mm |
| 69931 | BROCA HSS Co DIN338W INOX - 1020 - 11,75 mm | 11.75mm |
| 14252 | BROCA HSS Co DIN338W INOX - 1020 - 11,80 mm | 11.8mm |
| 74559 | BROCA HSS Co DIN338W INOX - 1020 - 11,90 mm | 11.9mm |
| 16323 | BROCA HSS Co DIN338W INOX - 1020 - 12,00 mm | 12mm |
| 74558 | BROCA HSS Co DIN338W INOX - 1020 - 12,10 mm | 12.1mm |
| 14276 | BROCA HSS Co DIN338W INOX - 1020 - 12,20 mm | 12.2mm |
| 69929 | BROCA HSS Co DIN338W INOX - 1020 - 12,25 mm | 12.25mm |
| 74557 | BROCA HSS Co DIN338W INOX - 1020 - 12,30 mm | 12.3mm |
| 74556 | BROCA HSS Co DIN338W INOX - 1020 - 12,40 mm | 12.4mm |
| 16324 | BROCA HSS Co DIN338W INOX - 1020 - 12,50 mm | 12.5mm |
| 74554 | BROCA HSS Co DIN338W INOX - 1020 - 12,60 mm | 12.6mm |
| 74553 | BROCA HSS Co DIN338W INOX - 1020 - 12,70 mm | 12.7mm |
| 69928 | BROCA HSS Co DIN338W INOX - 1020 - 12,75 mm | 12.75mm |
| 14288 | BROCA HSS Co DIN338W INOX - 1020 - 12,80 mm | 12.8mm |
| 74552 | BROCA HSS Co DIN338W INOX - 1020 - 12,90 mm | 12.9mm |
| 16325 | BROCA HSS Co DIN338W INOX - 1020 - 13,00 mm | 13mm |
| 13953 | BROCA HSS Co DIN338W INOX - 1020 - 1,30 mm | 1.3mm |
| 13955 | BROCA HSS Co DIN338W INOX - 1020 - 1,60 mm | 1.6mm |
| 13958 | BROCA HSS Co DIN338W INOX - 1020 - 1,80 mm | 1.8mm |
